Mad Dat Motorsport

RT4200HR Racing Seat

SKU: RT4200HR

$2,699.99

Price Inc GST

With increased rib support and enhanced head restraint foaming, the new RT4200 Series utilises the widely-respected RT4100 shell geometry but makes improvements in the areas of comfort and safety. The RT4200 is closer in feel through the rib and torso area when compared to our retired RT4009 Series. Racetech signature features such as back-mounting, pronounced thigh support, a moulded base cushion, parallel sides, and flush bosses for ease of mounting are all present, making this seat series hard to beat. Like all Racetech seats, these lightweight, resin-infused shells are crafted in Wellington, New Zealand. The RT4200 series comprises three sizes all with FIA 8855-1999 approval. For larger drivers, the RT4200THR is 60mm taller and the RT4200WTHR is both 60mm taller and 40mm wider.

The 4200 Series seats use Racetech RTB2009S steel or RTB1009M aluminium side mounting brackets.

Add ons are listed below and need to be added seperatley.

Side Brackets - Black Steel Brackets or Alloy Brackets

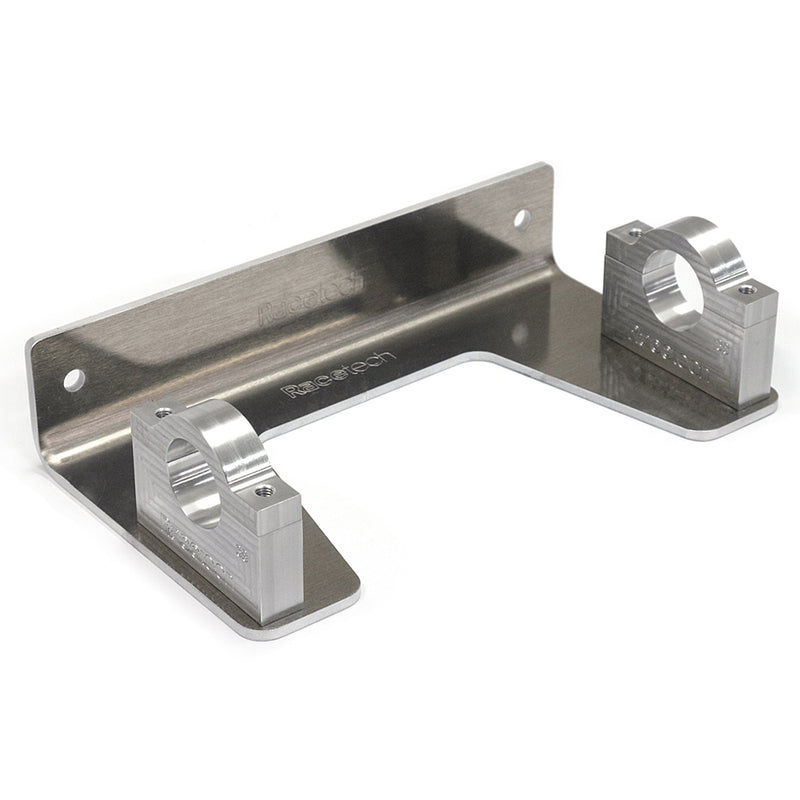

Back Bracket - Alloy  Back Bracket or Adjustable Alloy Back Bracket

Roll Cage Clamps - 38mm, 41mm or 44mm.

Available for pick up from our workshop in Mt Barker SA. If unable to pick up please contact us for a shipping quote.

Application
Common Applications From clubsport to national-level circuit and rally
Stock Colour / Material
Gelcoat Gloss Black
Seat Cover Black fire-retardant nylon fabric with Spacer mesh in the shoulders
Wear Patches N/A
Technical
Homologation FIA 8855-1999 Approved (using the applicable RT4100HR/WTHR seat shell)
Shell Construction Fibreglass Composite
Shell Weight From 6.1kg
Side Mount Hole Centres 295mm
Back Mount Hole Centres 250mm
Bolt Torque (Zinc) 30Nm / 22 ft lb
Design
Sizes HR - Standard
THR - Tall
WTHR - Wide & Tall
Head Restraint Integrated head restraint
HANS Compatible Yes
Harness Compatibility Up to 6-point harness
Large Harness Guides Yes
Air Ducting N/A
Back-mount Compatible Yes
